WorldView Legion

WorldView Legion 30cm-class fresh capture and archive imagery is now available and provide the highest resolution commercially available (at the time of development). Future satellites to be launched with a total of 6 for the full constellation.

About

WorldView Legion 1 and 2 launched during April 2024 at the Vandenberg Space Force Base in California, USA whilst WorldView Legion 3 and 4 launched in August 2024 at the Cape Canaveral Space Force Station in Florida, USA. These will be the first four of six WorldView Legion satellites, providing the highest resolution commercially available at the time of the development. Developed by Maxar, the six satellites will allow the capabilities to capture an area 15 times per day over in-demand areas, more than tripling the current capabilities (Maxar satellites) to collect sub 30cm high-resolution optical imagery and multispectral imagery enabled by its 8-band sensors.

WorldView Legion satellites have a mix between sun-synchronous and mid-inclination orbits, allowing the satellites ability to revisit high-interest areas in times of critical and time-sensitive decisions.

Features and Benefits

WorldView Legion satellites provide 8-band VNIR multispectral imagery for a wide variety of applications.
Industry-leading precision geolocation accuracy without ground control points.
Ability to capture large mono and stereoscopic collection eliminating the need for temporal variations.
WorldView Legion can be flown at a range of altitudes for between 29 and 50cm GSD.
50cm Digital Elevation Models (DEM) for accurate DEM production.
Benefits include vegetation classification for invasive species; forestry monitoring for illegal logging; construction monitoring in the urban and mining landscape; greenfield exploration via alteration mineral mapping and rapid updates of digital twins.

Wide coverage area and rapid revisit times

Next level revisiting capabilities with up to 15 times per day

Multispectral data and wide coverage

Wide swath multispectral data enables large-scale mapping and regional monitoring

15cm HD - 30cm high-resolution imagery

Highest resolution commercially available within the fields of mining, exploration, infrastructure and environmental

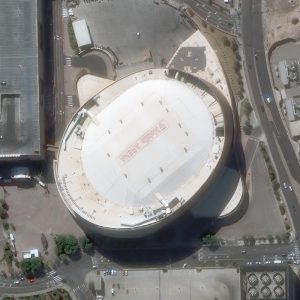

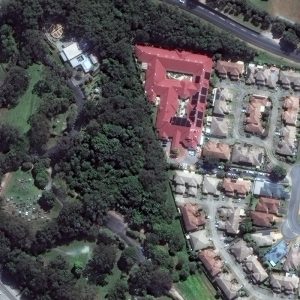

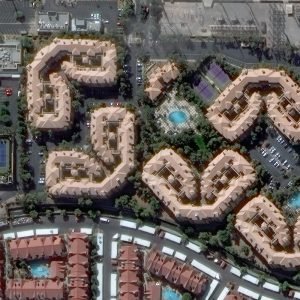

Sample Images

if WorldView Legion is right for your next project?

Unsure?

Our expert team can simplify the process for you. Just tell us the problem, and we will provide you with the solution.

Provider
Maxar Technologies
Satellites
4 (6 planned)
Resolution
Panchromatic nadir 0.34m Multispectral nadir: 1.36m
Swath width
10km
Bands
Panchromatic: 450nm - 800nm 8 Multispectral; Coastal Blue: 400nm - 450nm Blue: 450nm - 510nm Green: 510nm - 580nm Yellow: 585 - 625nm Red: 630nm - 690nm Red Edge1: 695nm - 715nm Red Edge2: 730nm - 750nm Near-IR: 770nm - 895nm
Stereo available
Yes
Coverage
6M sq km per day (Full constellation)
Accuracy
< 5m CE90 without ground control points < 1.5m RMSE
Altitude
518km
